电动四轮手推车-PC030-01

电动四轮手推车-PC030-01

类型 PC030-01
认证证书 UL / PSE / KC / CE
电机功率(W) 350
电池类型 铅酸/锂
电池容量(V / AH) 24/24
持续时间(H) 2.5
产品尺寸(毫米) 1350*730*890
包装尺寸(毫米) 1080*750*500
轮胎(前/后) 13-6 / 3.50-4
制动
每箱数量(PCS) 每20个集装箱 60
每40个总部集装箱 128
联系我们
产品细节

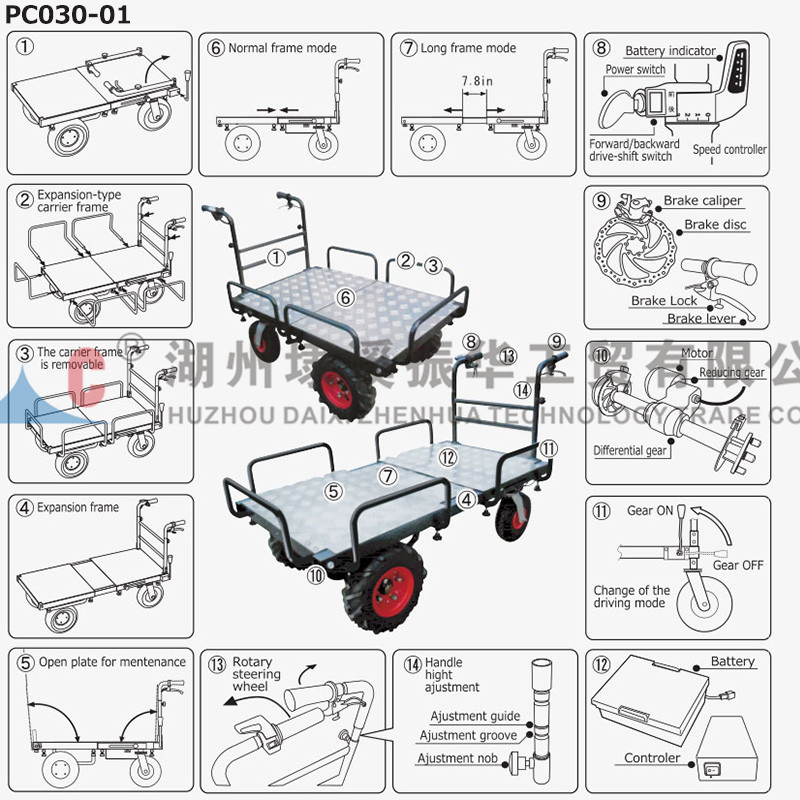

Electric Four Wheels Trolley Specificatons
● Size : 53in(L)x30in(W)x35in~39in(H)
● Weight: 88kg (with battery)
● Speed : High-speed/Low-speed switchable
〔High speed setting〕3.6mi/h (Forward) • 1.2mi/h (Backward)
〔Low speed setting〕1.9mi/h (Forward) • 0.8mi/h (Backward)
● Max.Load capacity : 400kg
● Max.Climbing angle : Slope 12°(Max.Load capacity : 300kg)
● Carrier area : 44in~52in(L)x30in~38in(W)
● Carrier hight: 15in
● Motor: Wheel motor 350W / RPM:80/min
  (Overcurrent protection circuit)
● Brake system : Disc brake / Brake lever with stopper
● Frame : Low carbon steel
● Surface treatment: Powdered baking finish
● Front tire(2): 13x5.00-6(Pneumatic tire)
● Rear tire(2) : 3.00-4 Caster type (No flat tire)
● Min.Tuming radius : 27in
● Battery : DC24V,24A Electrolyte lead storage battery
  (Encapsulated type)
● Power switch key (3)
● Grip throttle speed adjustment
  (0 position automatic retractable)
● Forward/backward drive-shift switch
● Battery indicator
● Rapid charging function : (charging time : 8hours)
● Charger : (input) 100V~240V/50~60Hz (output) DC29V 3.5A
● Operating temperature range : 32°F~104°F
● Qty per 20'/40' M Container(pcs): 67/135
● Made in China
